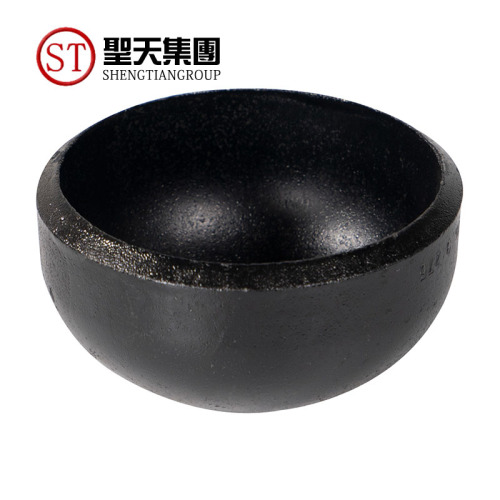

# How to calculate the theoretical weight of ASME B16.28 Seamless CS Butt Weld Pipe Fitting Caps

Views : 54
Author : admin
Update time : 2024-02-21 10:01:07

1、 Formula for calculating the weight of ASME B16.28 Seamless CS Butt Weld Pipe Fitting Caps

The weight calculation of Butt Weld Pipe Fitting Cap is a fundamental issue in engineering design and material use, which directly affects the engineering cost and performance indicators. There are many parameters that need to be considered in the calculation process, such as material density, size, wall thickness, etc.

The theoretical weight calculation formula for Butt Weld Pipe Fitting Cap is as follows:

W=(OD WT) * WT * 0.0246615 * L

Among them, W is the weight of the pipe fittings (kg), OD is the outer diameter (mm), WT is the wall thickness (mm), and L is the length of the pipe fittings (m)

It should be noted that metric units are used here. If English units are needed, conversion formulas can be used for conversion.

2、 Precautions

When using the weight calculation formula for ASME B16.28 Seamless CS Butt Weld Pipe Fitting Cap, the following precautions should be taken:

1. The material density should be selected as the standard value, for example, the density of carbon steel pipe fitting is 7850kg/m ³。

2. The outer diameter and wall thickness should use standard dimensions, such as the wall thickness with a nominal diameter of 219mm, which can be in various specifications such as 5mm, 6mm, 8mm, 10mm, etc.

The coefficient 0.0246615 in the calculation formula is for metric units and needs to be converted to English units.

4. The calculation result is a theoretical value, which has a certain error with the actual weight and needs to be adjusted according to the actual situation.
