90 Degree ASTM A403 Wp 304L Stainless Steel Long Radius Elbows have strong corrosion resistance. Hebei Shengtian Group is a manufacturer and supplier of 90 Degree ASTM A403 Wp 304L Stainless Steel Long Radius Elbow in different sizes and types. In addition to containing chromium and nickel elements, it also includes carbon, manganese, silicon, phosphorus, sulfur and nitrogen.
Product Description
| Product Name | Elbow |
| Elbow Type | Long radius elbow,Short radius elbow, 90 degree elbow, 45 degree elbow,180 degree elbow, reducing elbow. |
| Standard | ASME B16.9, ASME B16.11, ASME B16.5; JIS B2311,JIS B2312,JIS B2313,JIS B2316; MSS SP-43, MSS SP-95, MSS SP-75, MSS SP-79; ISO 3419,ISO 5251,DIN 2615 SY/T 0510, SH 3408, SH3410 |
| Size | 1/2''-48''(Butt-welding and seamless);1/8''-4''(Threaded and socket-welding); 16''~72''(Welded) |
| Wall thickness | SCH10,SCH20,SCH30,STD,SCH40,SCH60,XS,SCH100,SCH120,SCH40,SCH160,XXS |
| Manufacturing process | Hot forming, Push, Press, Forge, Cast, etc. |
| Stainless steel | ASTM A403 WP304, A403 WP304L, A403 WP316, A403 WP316L, A403 WP321 |
| ASTM A182 F 304, 304L,316, 316L,904L | |
| Application | Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc |
| Transport package | Standard sea export packing or as required |
| Payment terms | T/T,L/C |
| Loading port | Tianjin Port |

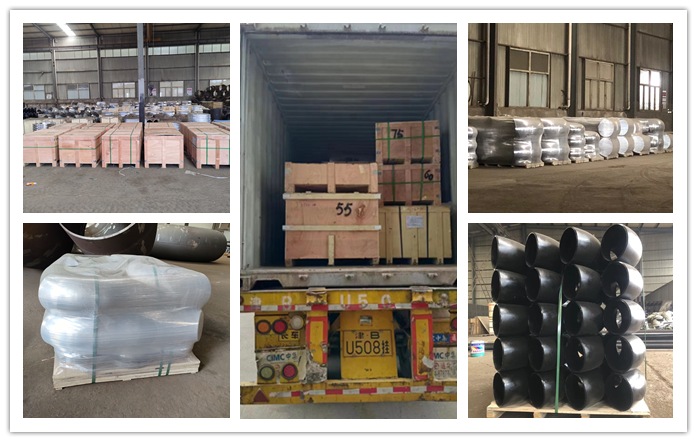

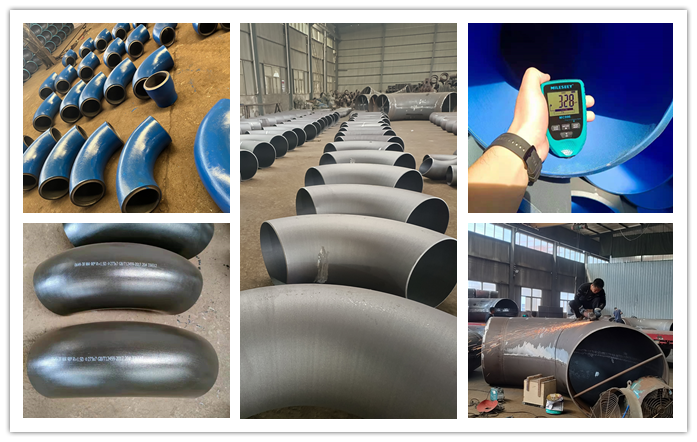

Workshop
Different types of fittings are used for different types of applications. 90 Degree ASTM A403 Wp 304L Stainless Steel Long Radius Elbow is a fitting used to change the direction of the pipe by a default 45 degree angle or 90 degree angle. There are specific types of elbows and sizes such as long radius elbows and short radius elbows. 90 Degree ASTM A403 Wp 304L Stainless Steel Long Radius Elbow is very widely used. 90 Degree ASTM A403 Wp 304L Stainless Steel Long Radius Elbow has a minimum yield strength of 205MPa and a minimum tensile strength of 515MPa. We can also customize stainless steel elbows according to drawings.
