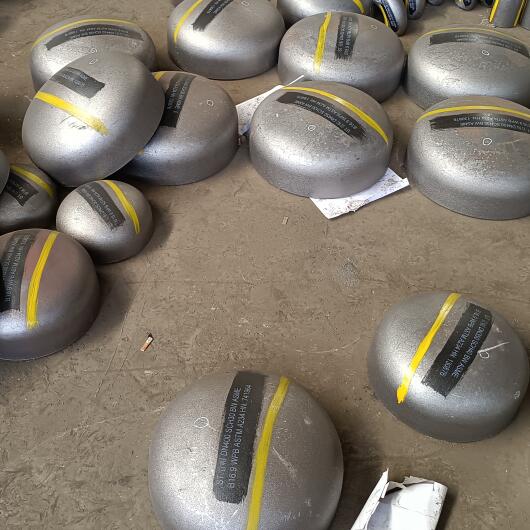

ASME B16.9 Butt Weld Carbon Steel End Pipe Caps is a type of pipe fittings, that is mainly used as a plug which covers the end of a pipe.
At ASME B16.9 Cap, we produce various grades of B16.9 Buttweld End Cap. The materials used to manufacture pipe end caps in our factory are as follows – Stainless steel grades such as 304, 304L, 316, 316L, 321, 347, 317L, 310S, 904L, carbon steel,alloy steel.We manufacture pipe cap as required by the buyer based on customized drawing.
| Products | Pipe cap | |
| Size | Seamless Pipe Fittings : 1/2"-24" , DN15-DN600 | |
| ERW Pipe Fittings : 24"-72" , DN600-DN1800. | ||
| Customize Accepted | ||
| Thickness |
SCH10,SCH20,SCH30,STD SCH40, SCH60, XS, SCH80., SCH100, SCH120, SCH140, SCH160, XXS. |
|
| Standard | ASME B16.9, ASTM A234, ASTM A420, ANSI B16.9/B16.25/B16.28; MSS SP-75 | |
| DIN2605-1/2615/2616/2617 | ||
| JIS B2311 ,2312,2313 | ||
| EN 10253-1 ,EN 10253-2, etc | ||
| We can produce as customers' drawing and standard. | ||
| Material | Carbon Steel | ASTM A234WPB,,A234WPC,A420WPL,St37.0,St35.8,St45.8,PG370,PT410,10#,20#,20G,23g,20R,Q235,16Mn, 16MnR,1Cr5Mo, 12CrMo, 12CrMoG, 12Cr1Mo |
| Alloy Steel | A234WP12,A234WP11,A234WP22,A234WP5,A420WPL6,A420WPL3,1.7335,1.7380, 1.0488(1.0566),PA22,PA23,PA24,PA25,PL380 |
|
| Stainless Steel | ASTM A403 WP304,304L,316,316L,321. 1Cr18Ni9Ti, 00Cr19Ni10,00Cr17Ni14Mo2, ect.,: 1.4301,1.4306,1.4401,1.4571,SUS304,SUS304L,SUS316,SUS316L,SUS321 |
|
| Surface Treatment | Hot Galvanized |
|
Black Painting |
||
Transparent Oil, Anti-Rust Oil |
||
| Application | Petroleum, chemical, machinery, boiler,electric power, shipbuilding, construction, etc | |
| Package | Wooden Pallet, Wooden Case, Customers' Requirement | |
| Delivery | Within 7-10 days in stock, customized as usual 20 days after receiving advance payment from custoners, also according to quantity |
|
| Payment Term | T/T, L/C, D/P | |

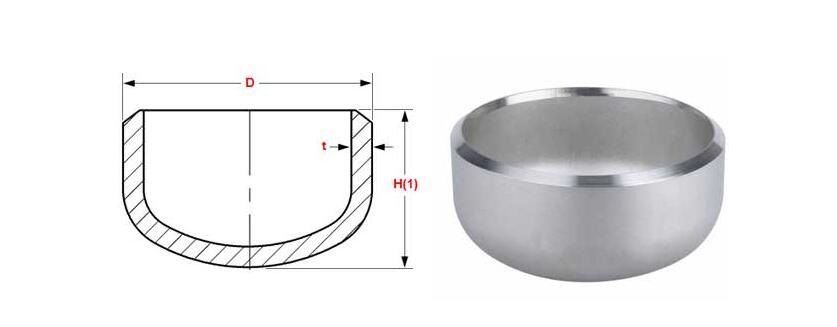

| NPS | O.D. D |
LENGTH H |
LENGTH H1 |
| 1/2 | 21.3 | 25 | 25 |
| 3/4 | 26.7 | 25 | 25 |
| 1 | 33.4 | 38 | 38 |
| 1.1/4 | 42.2 | 38 | 38 |
| 1.1/2 | 48.3 | 38 | 38 |
| 2 | 60.3 | 38 | 44 |
| 2.1/2 | 73 | 38 | 51 |
| 3 | 88.9 | 51 | 64 |
| 3.1/2 | 101.6 | 64 | 76 |
| 4 | 114.3 | 64 | 76 |
| 5 | 141.3 | 76 | 89 |
| 6 | 168.3 | 89 | 102 |
| 8 | 219.1 | 102 | 127 |
| 10 | 273 | 127 | 152 |
| 12 | 323.8 | 152 | 178 |
| 14 | 355.6 | 165 | 191 |
| 16 | 406.4 | 178 | 203 |
| 18 | 457 | 203 | 229 |
| 20 | 508 | 229 | 254 |
| 22 | 559 | 254 | 254 |
| 24 | 610 | 267 | 305 |
| 26 | 660 | 267 | … |
| 28 | 711 | 267 | … |
| 30 | 762 | 267 | … |
| 32 | 813 | 267 | … |
| 34 | 864 | 237 | … |
| 36 | 914 | 267 | … |
| 38 | 965 | 305 | … |
| 40 | 1016 | 305 | … |
| 42 | 1067 | 305 | … |
| 44 | 1118 | 343 | … |
| 46 | 1168 | 343 | … |
| 48 | 1219 | 343 |
There are various fittings used to seal an open end of the pipe. From valves, flanges to caps. ASME B16.9 Butt Weld Cap is a grade of cap that is used to seal an open end of a pipe. The ASME B16.9 Cap may or may not be included while calculating the running length of the pipe. It acts as a protective device thus protecting the pipe ends.Carbon Steel End Cap manufacturers In China recommend these caps as a piping header for future connections.
