ASTM A234 WPB ELBOW is a common grade for 90 degree long radius elbow, which is one of the highly demanded. They available in a large size and thickness range. They have a good performance and suffices most industrial pipeline needs.
ASTM A234 WPB ELBOW is used to be installed between two lengths of pipe or tube allowing a change of 90 degree direction,usually these elbows distinguished by connection ends, The ends may be machined for butt welding , threaded , or socketed , so the elbows are consist of butt weld,thread elbow.socket elbow and other series.the material is according to the application use such as high temperature use,sanitary fitting,regular industrial use etc.

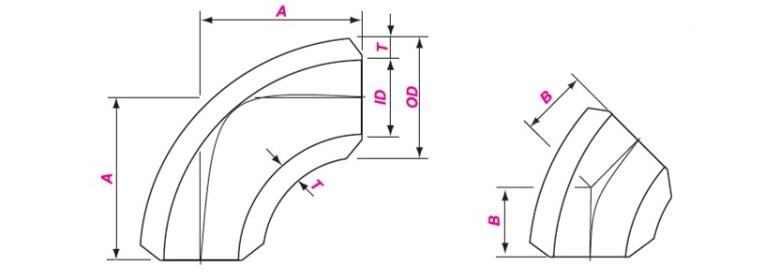

| NPS | O.D. D |
90° Long Rad Center to End A |
45° Long Rad Center to End B |
90° 3D Center to End A |
45° 3D Center to End B |
| 1/2 | 21.3 | 38 | 16 | / | / |
| 3/4 | 26.7 | 38 | 19 | 57 | 24 |
| 1 | 33.4 | 38 | 22 | 76 | 31 |
| 1.1/4 | 42.2 | 48 | 25 | 95 | 39 |
| 1.1/2 | 48.3 | 57 | 29 | 114 | 47 |
| 2 | 60.3 | 76 | 35 | 152 | 63 |
| 2.1/2 | 73 | 95 | 44 | 190 | 79 |
| 3 | 88.9 | 114 | 51 | 229 | 95 |
| 3.1/2 | 101.6 | 133 | 57 | 267 | 111 |
| 4 | 114.3 | 152 | 64 | 305 | 127 |
| 5 | 141.3 | 190 | 79 | 381 | 157 |
| 6 | 168.3 | 229 | 95 | 457 | 189 |
| 8 | 219.1 | 305 | 127 | 610 | 252 |
| 10 | 273 | 381 | 159 | 762 | 316 |
| 12 | 323.8 | 457 | 190 | 914 | 378 |
| 14 | 355.6 | 533 | 222 | 1067 | 441 |
| 16 | 406.4 | 610 | 254 | 1219 | 505 |
| 18 | 457 | 686 | 286 | 1372 | 568 |
| 20 | 508 | 762 | 318 | 1524 | 632 |
| 22 | 559 | 838 | 343 | 1676 | 694 |
| 24 | 610 | 914 | 381 | 1829 | 757 |
| 26 | 660 | 991 | 406 | 1981 | 821 |
| 28 | 711 | 1067 | 438 | 2134 | 883 |
| 30 | 762 | 1143 | 470 | 2286 | 946 |
| 32 | 813 | 1219 | 502 | 2438 | 1010 |
| 34 | 864 | 1295 | 533 | 2591 | 1073 |
| 36 | 914 | 1372 | 565 | 2743 | 1135 |
| 38 | 965 | 1448 | 600 | 2896 | 1200 |
| 40 | 1016 | 1524 | 632 | 3048 | 1264 |
| 42 | 1067 | 1600 | 660 | 3200 | 1326 |
| 44 | 1118 | 1676 | 695 | 3353 | 1389 |
| 46 | 1168 | 1753 | 727 | 3505 | 1453 |
| 48 | 1219 | 1829 | 759 | 3658 | 1516 |
Pipe Fitting Elbow Specifications
Thickness : Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.
Dimensions : ANSI/ASME B16.9, B16.28, MSS-SP-43.
Size : Seamless Elbow ( 1/2″～24″), ERW / Welded / Fabricated Elbow (1/2″～48″)
Form : Pipe Elbow, 45 Deg Elbow, 90 Deg Elbow, 180 Deg Elbow, Long Radius Elbow, Short Radius Elbow, 1D Elbow, 3D Elbow, 5D Elbow, Seamless Elbow, Welded Elbow
Material:Stainless Steel: ASTM A403 WP 304/ 304L/ 304H/ 316/ 316L/ 317/ 317L/ 321/ 310/ 347/ 904L/ etc.
Carbon Steel: ASTM A234 WPB / A420 WPL3/ A420 WPL6/ MSS-SP-75 WPHY 42/46/52/56/60/65/70 etc.
Alloy Steel: ASTM A234 / WP5/ WP9/ WP11/ WP22/ WP91
SIZE:
1/2″ N. B. TO 24″ N. B. Seamless Pipe Fittings(BW)
1/2″ N. B. TO 72″ N. B. Welded BW
Marking:Standard/ As per request
Packing: Wooden case(Fumigation free) Or as per request
Inspection: In house and third party
