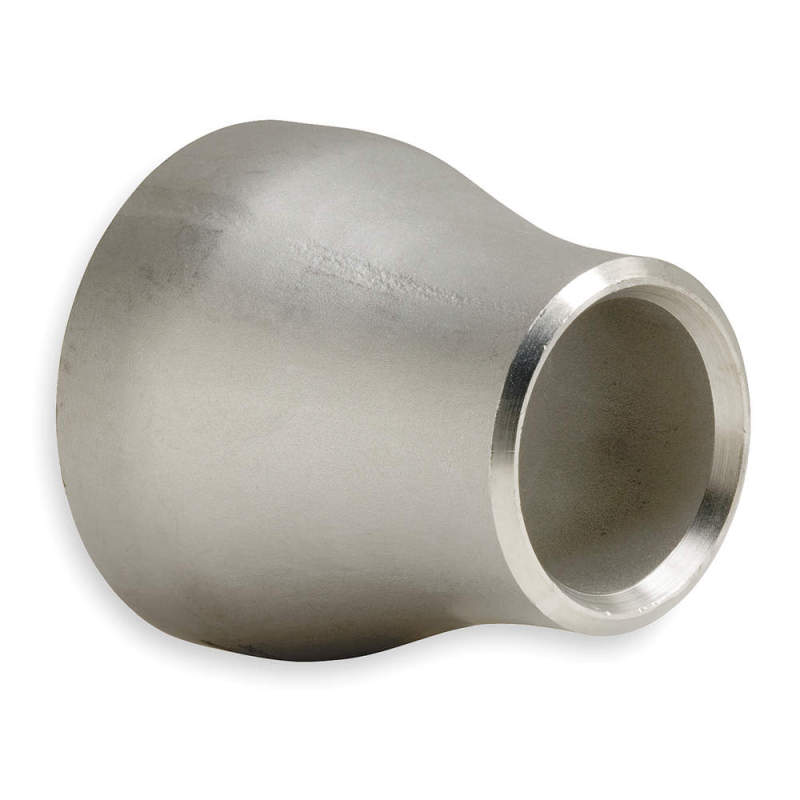

Round ASME B16.9 120mm SS Concentric Reducer
Description
| Standard: | ANSI B16.9,MSS SP-95, GOST 17375,DIN2566,JIS | OD.: | 1/2'' ~ 48'' |
|---|---|---|---|
| Color: | Black | Material: | Allo Steel |
| Thickness: | SCH 20- SCH XXS | Technics: | Buttweld |
| High Light: |
120mm SS Concentric Reducer
|
||
ASME B16.9 Buttweld Alloy Steel Pipe Reducer WP6 P11 Piping System Carbon Steel Pipe Reducer
| Material: | Carbon steel,Alloy steel,Stanless steel,Low-temperature steel,High performance |
| Standard: | ASME B16.9-2007, EN10253-1-1999, DIN2605-1-1992,JIS B2311-2009 JIS B2312-2009 |
| Size: | 1/2"～24" DN15～DN600,4"～72" DN150～DN1800 |
| Thickness/Pressure: | sch10, sch20, sch30, std, sch40, sch60, xs, sch80, sch100, sch120, sch140, sch160, xxs, std,sch5s, sch20s, sch40s, sch80s |
Pipe reducers come into concentric reducers and eccentric reducers.They are made of carbon steel,alloy steel,stainless steel,low temperature steel or high performance steel,etc
Standards
ASME B16.9-2007
Size
Seamless elbow:1/2"～24" DN15～DN600
Welded Elbow: 4"～72" DN150～DN1800
Wall Thinkness
sch10, sch20, sch30, std, sch40, sch60, xs, sch80, sch100,
sch120, sch140, sch160, xxs, std,sch5s, sch20s, sch40s, sch80s
Maximum thickness: 120mm
Materials
Carbon steel: ASTM/ASME A234 WPB,WPC
Alloy steel: ASTM/ASME A234 WP 1-WP 12-WP 11-WP 22-WP 5-WP 91-WP 911
Stanless steel: ASTM/ASME A403 WP 304-304L-304H-304LN-304N
ASTM/ASME A403 WP 316-316L-316H-316LN-316N-316Ti
ASTM/ASME A403 WP 321-321H ASTM/ASME A403 WP 347-347H
Low-temperature steel:ASTM/ASME A402 WPL 3-WPL 6
High performance: ASTM/ASME A860 WPHY 42-46-52-60-65-70
We have adopted advanced production equipment and technologies to manufacture our pipe caps ,pipe bends,weld neck,socket pipe,and seamless steel, which can not only improve product quality, but also save raw materials. Our products have high strength, good toughness and resistance to corrosion.

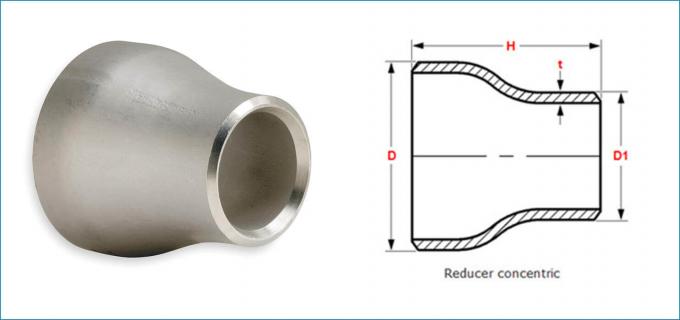

Dimensions of Carbon Steel Pipe Reducer
