Spectacle Blind Flange
What is a spectacle blind flange?

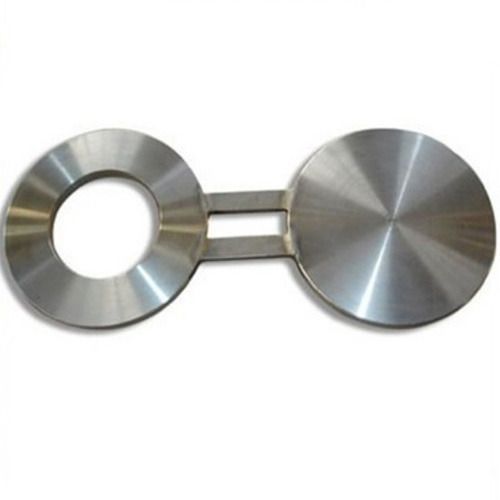

A spectacle blind flange is also known as a figure-8 blind flange,it is made of two pieces metal discs which are joint together by a part of steel handle in the middle.One disk is a solid plate( just like blind flange) and the other is a ring.Its shape is similar to a pair of glasses,so it is celled the spectacle blind flange.The spectacle blind flange(figure-8 blind flange) is a safety device used to isolate piping or equipment that needs to be inspected or removed from a piping system.Its end of the ring that connects to the pipe to allow flow throgh the pipe during operation,similar to the end of the blind flange that connect to the pipe to prevent flow during maintenance.Unlike valves,spectacle blind flanges are permanent or long term isolation block.It can be rotated to place the blind or hollew end into the ductwork so that the system can be opened or closed.
Spectacel blind flange material gardes:
Carbon steel:
ASTM/ASME A105 Specatacle Blind Flange
ASTM/ ASME A 350 LF 2 Specatacle Blind Flange
20# Specatacle Blind Flange
Q235 Specatacle Blind Flange
16Mn Specatacle Blind Flange
Stainless steel:
ASTM A182 Gr F304 Spectacle Blind Flange
ASTM A182 Gr F304L Spectacle Blind Flange
ASTM A182 Gr F310 Spectacle Blind Flange
ASTM A182 Gr F316 Spectacle Blind Flange
ASTM A182 Gr F316L Spectacle Blind Flange
ASTM A182 Gr F317 Spectacle Blind Flange
ASTM A182 Gr F317L Spectacle Blind Flange
ASTM A182 Gr F321 Spectacle Blind Flange
ASTM A182 Gr F347 Spectacle Blind Flange
Alloy steel:
A350 Gr LF2 Spectacle Blind Flange
A350 Gr LF3 Spectacle Blind Flange
A182 Gr F1 Spectacle Blind Flange
A182 Gr F5 Spectacle Blind Flange
A182 Gr F9 Spectacle Blind Flange
A182 Gr F11 Spectacle Blind Flange
A182 Gr F12 Spectacle Blind Flange
A182 Gr F22 Spectacle Blind Flange
Nickel alloy steel:
ASTM B564 UNS no4400 Spectacle Blind Flange
ASTM B564 UNS n06600 Spectacle Blind Flange
ASTM B564 UNS n06625 Spectacle Blind Flange
ASTM B564 UNS n08810 Spectacle Blind Flange
ASTM B564 UNS n08811 Spectacle Blind Flange
ASTM B564 UNS n08825 Spectacle Blind Flange
ASTM B564 UNS n10276 Spectacle Blind Flange
ASTM B564 UNS n10665 Spectacle Blind Flange
Specifications of spectacle blind flange
| Standard size (DN15-DN4000mm) |
ANSI & ASWE (Level 150-2500) | B16.5 ,B16.47 , B16.48 ; |
| DIN (6-40 bar) | Din2527, 2573, 2576, 2630-2638, 2627-2629, 2565-2569; | |
| Just (5k - 30k) | He B2202, 2210, 2220; | |
| BS EN1092-1 (6-40 bar) | Type 01, Type 02, Type 03, Type 04, Type 05, Type 11, Type 12, Type 13, Type 21, etc. | |
| other | MSS SP44, AWWA C207, API 6A, API 16A, AS 2129, GB/T9119, JB/T 74, HG/T20592, 20615, SH 3406, Q/GDW 705, and other equivalent standards, as well as drawing customization; | |
| Size | 1/2″(15NB) to 24″(600NB) |
|
| Flange Face Type |
Raised Face (RF),Flat Face (FF),Ring Type Joint (RTJ) |
|
| connect | Convex surface, flat, annular joint, overlapping joint, large convex concave, small convex concave, large tongue, groove shape, etc. | |
Shengtian Group can provide a variety spectacle blind flange,as follows:
ANSI/ASME B16.48 class 150 spectacle blind flange
ANSI/ASME B16.48 class 300 spectacle blind flange
ANSI/ASME B16.48 class 600 spectacle blind flange
ANSI/ASME B16.48 class 900 spectacle blind flange
ANSI/ASME B16.48 class 1500 spectacle blind flange
ANSI/ASME B16.48 class 2500 spectacle blind flange
Shengtian Group manufactures spectacle blind flange using high-quality raw materials, and only flanges that undergo third-party testing are delivered to customers. If you have custom requirements, please send your flange drawings to our email: sale@stpipefitting.cn, and we will contact you as soon as possible.
