How to Measure the Dimensions of Forged Flanges

　　In industrial piping systems, flanges are critical components connecting pipes, valves, and equipment. Their dimensional accuracy directly impacts the safety, sealing, and operational efficiency of the entire system. Mastering the correct flange measurement methods is not only an essential skill for technicians but also a crucial guarantee for ensuring the long-term stable operation of industrial plants.

　　What are Forged Flanges?

　　Forged flanges are pipe fittings manufactured through a forging process. Forging involves applying pressure to a metal billet at high temperatures, causing plastic deformation to obtain a workpiece with a predetermined shape and excellent mechanical properties.

　　Appearance: Forged flanges typically have a smooth surface and dense structure. Due to the characteristics of the forging process, their surface does not have defects such as porosity and sand holes common in castings. After precision machining on a lathe, the sealing surfaces, bolt holes, and other areas have high precision and a superior appearance.

　　Applications: Forged flanges are critical connecting components in high-pressure piping systems in industries such as oil, natural gas, chemical, power, and shipbuilding. They are used to connect pipes to pipes, valves, pumps, pressure vessels, or other equipment, allowing for segmented isolation and maintenance of the system.

　　Features:

　　High strength and good toughness: The forging process refines the metal grains, making forged flanges significantly superior to cast flanges in tensile strength, impact toughness, and fatigue resistance.

　　Dense structure: Uniform internal structure, free of internal defects, and extremely low porosity, providing more reliable sealing under high pressure.

　　High pressure resistance: Capable of safely withstanding extremely high internal pressure and external loads.

　　High reliability: Due to its superior comprehensive mechanical properties, forged flanges are far safer than cast flanges in harsh and hazardous operating conditions.

　　Main production standards:

　　ASME B16.5: The most common standard in North America, covering pipe flanges and flange fittings from 1/2" to 24", with pressure ratings from 150 psi to 2500 psi.

　　ASME B16.47: Covers large-diameter flanges (from 26" to 60"), divided into Series A and Series B, suitable for applications requiring large flange sizes, such as oil and gas transportation.

　　EN 1092-1: The core standard of the European system, which classifies sealing surfaces according to their form (such as raised face, flat face, tongue and groove face, etc.) and pressure rating (represented by PN, such as PN6, PN10, PN16, PN40, etc.).

　　Comprehensive Understanding of Flange Components and Specifications

　　Before starting measurements, it is essential to be familiar with all components of the flange and their functional characteristics. Key flange parameters include outer diameter (overall flange width), inner diameter (width of the center bore for pipe welding), bolt circle diameter (diameter of the circle passing through the centers of all bolt holes), bolt hole diameter, number of bolt holes, hub diameter (if applicable), and sealing face type. The sealing face type is particularly critical; common types include raised face (RF), flat face (FF), and ring joint (RTJ). Different sealing face designs directly affect the flange's applicable scenarios and sealing performance.

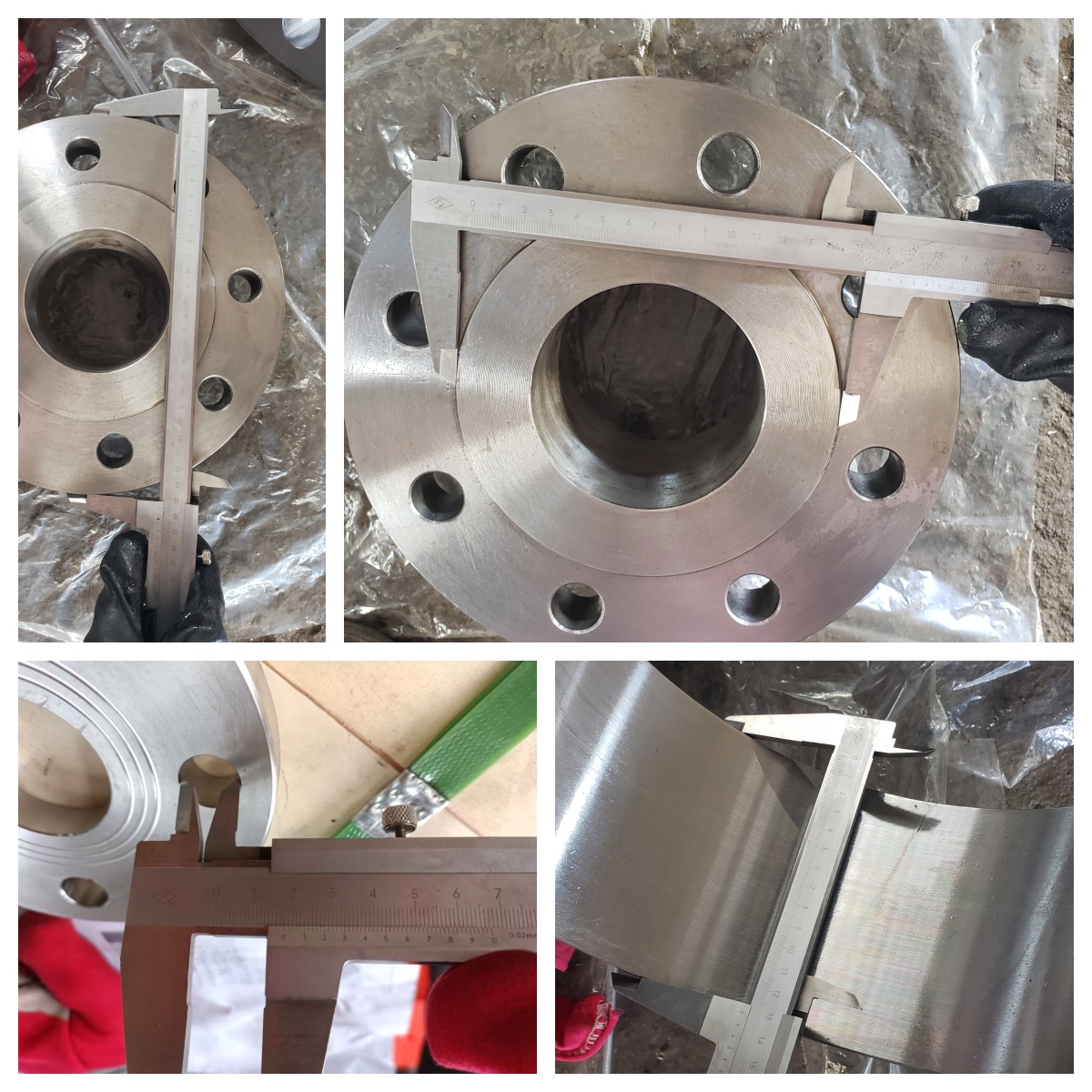

　　Measure the outer diameter: Use calipers or a tape measure to measure from edge to edge of the flange, ensuring the measuring tools are perfectly aligned. Record the value as OD. This measurement is fundamental data for flange selection.

　　Determine the bolt circle diameter: Measure directly from the center of any bolt hole to the center of the opposite bolt hole. For flanges with an even number of bolt holes, any pair of opposite holes can be measured; for flanges with an odd number of bolt holes, the distance between the two nearest bolt holes needs to be measured. Ensure the ruler passes precisely through the center point of each hole during measurement.

　　Measure the bolt hole diameter and number: Use high-precision calipers to measure the inner diameter of each bolt hole, and accurately count the total number of bolt holes on the flange. These two data points are crucial to the flange's tightening performance.

　　Measure the hub size: For flanges with a hub design, additionally measure the diameter and thickness of the hub area. These data reflect the flange's structural strength and pressure bearing capacity.

　　Measure the flange thickness: Measure the thickness directly from one side of the flange to the other. This parameter directly relates to the flange's pressure rating and load-bearing capacity, and is a key indicator for determining the pressure rating during selection.

　　Identifying the Sealing Surface Type: Carefully examine the structural form of the flange sealing surface, as this determines the compatibility between the flange and the pipes and gaskets, affecting the final sealing effect.

　　Data Comparison and Recording Standards: After completing all measurements, compare the obtained data with international standard flange specification tables such as ANSI, DIN, or ASME to confirm the specific model and specifications of the flange. Carefully verify all measured values to ensure accuracy, and then establish a complete record file to provide accurate data for subsequent replacement, repair, and maintenance work.

　　The Importance of Forged Flange Dimension Measurement:
        Ensuring System Compatibility: Precise flange dimensions are a prerequisite for ensuring perfect fit between all components of the piping system. Dimensional mismatches can lead to incorrect connections, increase the risk of leakage, and even cause system failures and unplanned downtime.

　　Improving Safety Performance: In systems handling toxic or high-pressure media, accurately measured flanges can form reliable seals, significantly reducing the risk of leakage and protecting the safety of personnel, the environment, and equipment.

　　Optimizing Operating Costs: Accurate flange dimensions can avoid frequent downtime and repairs due to improper installation, significantly reducing maintenance costs and production losses.

　　Enhanced System Performance: Properly installed flanges ensure smooth fluid flow, reducing pressure loss and the risk of blockage. Especially under high pressure and high temperature conditions, appropriately sized flanges provide a solid foundation for stable system operation.

　　Compliance with Standards: Industry standards have strict regulations regarding the pressure rating, materials, and dimensions of flanges. Accurate measurement ensures compliance with quality control and safety certification requirements, avoiding legal risks and reputational damage due to non-compliance.

　　Ensuring Structural Integrity: Under high pressure and high temperature conditions, precisely sized flanges can effectively withstand operational stresses, maintain the structural integrity of connections, and prevent serious consequences such as joint failure.

　　While forged flange dimensional measurement is a fundamental technical task, it is crucial for the safe and efficient operation of the entire industrial piping system. Through a systematic measurement process, professional measuring tools, and rigorous record comparison, ensuring the accuracy of each flange dimension lays a solid foundation for the long-term stable operation of industrial plants. In today's industrial environment, which increasingly emphasizes safe production and operational efficiency, mastering the correct methods for measuring forged flange dimensions is particularly important.
