API 605/ASME B16.47 Series B Welding Neck Flanges Dimensions

Views : 31
Author : admin
Update time : 2026-04-07 16:33:42

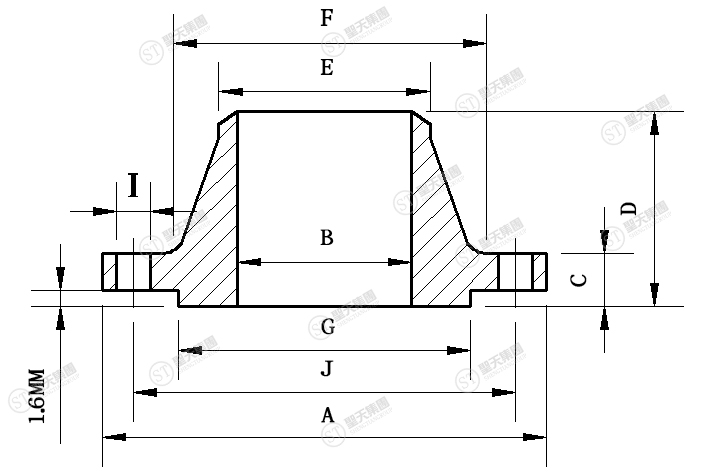

API 605/ASME B16.47 Series B Welding Neck Flanges Dimensions


API 605/ASME B16.47 Series B Welding Neck Flanges Class 75 LBS Dimensions

NPS A B I Holes C D F E G Weight
26″ 762 635 19.1 36 33.3 58.7 676.1 661.9 704.9 39.98
28″ 813 685.8 19.1 40 33.3 62 726.9 712.7 755.7 43.86
30″ 864 736.6 19.1 44 33.3 65 777.7 763.5 806.5 47.8
32″ 941 787.4 19.1 48 35.1 69.9 828.5 814.3 857.3 64.09
34″ 965 838.2 19.1 52 35.1 73.2 879.3 865.1 908.1 58.17
36″ 1034 889 22.4 40 36.6 85.9 935 915.9 965.2 77.33
38″ 1084 939.8 22.4 40 38.1 88.9 985.8 966.7 1016 84.5
40″ 1135 990.6 22.4 44 38.1 91.9 1036.6 1017.5 1066.8 90.04
42″ 1186 1041.4 22.4 48 39.6 95.3 1087.4 1068.3 1117.6 97.97
44″ 1251 1092.2 25.4 36 42.9 104.6 1140 1119.1 1174.8 122.25
46″ 1302 1143 25.4 40 44.5 108 1190.8 1169.9 1225.6 131.9
48″ 1353 1193.8 25.4 44 46 111.3 1241.6 1220.7 1276.4 141.7
50″ 1403 1244.6 25.4 44 47.8 115.8 1293.9 1271.5 1327.2 153.84
52″ 1457 1295.4 25.4 48 47.8 120.7 1344.7 1322.3 1378 165.07
54″ 1508 1346.2 25.4 48 49.3 125.5 1397 1373.1 1428.8 178.82
56″ 1575 1397 28.4 40 50.8 134.9 1450.8 1423.9 1485.9 212.51
58″ 1626 1447.8 28.4 44 52.3 138.2

1501.6 1474.7 1536.7 225.48
60″ 1676 1498.6 28.4 44 55.6 144.5 1552.4 1525.5 1587.5 245.57

API 605/ASME B16.47 Series B Welding Neck Flanges Class 125 LBS Dimensions

NPS A B I Holes C D F E G Weight
26″ 870 640.96 35 24 50.8 127 723.9 660   131.11
28″ 927 691.96 35 28 52.4 128.6 781.1 711   148.39
30″ 984 742.96 35 28 54 130 831.9 762   166.12
32″ 1061 793.96 41 28 57.2 133.4 889 813   202.17
34″ 1111 844.96 41 32 58.7 134.9 939.8 864   215.59
36″ 1169 894.96 41 32 60.3 136.5 997 914   242.91
38″ 1238 945.96 41 32 60.3 136.5 1060.5 965   278.58
40″ 1289 996.96 41 36 63.5 139.7 1111.3 1016   302.23
42″ 1346 1047.96 41 36 66.7 142.9 1168.4 1067   339.48
44″ 1404 1098.96 41 40 66.7 142.9 1219.2 1118   360.51
46″ 1454 1148.96 41 40 68.3 144.5 1270 1168   383.96
48″ 1511 1199.96 41 44 69.9 146.1 1327.2 1219   416.49
50″ 1569 1250.96 48 44 69.9 146.1 1378 1270   431.18
52″ 1626 1301.96 48 44 73 149.2 1435.1 1321   477.19
54″ 1683 1352.96 48 44 76.2 152.4 1492.3 1372   526.73
60″ 1854 1504.96 48 52 79.4 155.6 1657.4 1524   639.98
66″ 2032 1656.96 48 52 85.7 161.9 1816.1 1676   810.14
72″ 2197 1809.96 48 60 88.9 165.1 1993.9 1829   951.69
84″ 2534 2114.96 54 64 98.4 174.6 2298.7 2134   1274.95
96″ 2877 2418.96 61 68 108 184.2 2609.9 2438   1690.54


API 605/ASME B16.47 Series B Welding Neck Flanges Class 150 LBS Dimensions

NPS A B I Holes C D F E G Weight
26″ 786 635 22.4 36 41.1 88.9 684.3 661.9 711.2 63.56
28″ 837 685.8 22.4 40 44.5 95.3 735.1 712.7 762 73.5
30″ 887 736.6 22.4 44 44.5 100.1 787.4 763.5 812.8 80.05
32″ 941 787.4 22.4 48 46 108 839.7 814.3 863.6 91.76
34″ 1005 838.2 25.4 40 49.3 110.2 892 865.1 920.8 110.27
36″ 1057 889 25.4 44 52.3 117.3 944.6 915.9 971.6 124.91
38″ 1124 939.8 28.4 40 53.8 124 997 968.2 1022.4 149.17
40″ 1175 990.6 28.4 44 55.6 128.5 1049.3 1019 1079.5 162.58
42″ 1226 1041.4 28.4 48 58.7 133.4 1101.9 1069.8 1130.3 179.18
44″ 1276 1092.2 31.8 52 60.5 136.7 1152.7 1120.6 1181.1 187.51
46″ 1341 1143 31.8 40 62 144.5 1205 1171.4 1234.9 223.84
48″ 1392 1193.8 31.8 44 65 149.4 1257.3 1222.2 1289.1 243.46
50″ 1443 1244.6 31.8 48 68.3 153.9 1308.1 1273 1339.9 263.22
52″ 1494 1295.4 31.8 52 69.9 157.2 1360.4 1323.8 1390.7 279.95
54″ 1549 1346.2 31.8 56 71.4 162.1 1412.7 1374.6 1441.5 303.62
56″ 1600 1397 31.8 60 73.2 166.6 1465.3 1425.4 1492.3 323.64
58″ 1675 1447.8 35.1 48 74.7 174.8 1516.1 1476.2 1543.1 383.77
60″ 1726 1498.6 35.1 52 76.2 179.3 1570 1527 1600.2 407.55

API 605/ASME B16.47 Series B Welding Neck Flanges Class 300 LBS Dimensions

NPS A B I Holes C D F E G Weight
26″ 867 635 35.1 32 88.9 144.5 701.5 665.2 736.6 189.56
28″ 921 685.8 35.1 36 88.9 149.4 755.7 716 787.4 207.56
30″ 991 736.6 38.1 36 93.7 158 812.8 768.4 844.6 254.27
32″ 1054 787.4 41.1 32 103.1 168.1 863.6 819.2 901.7 310.53
34″ 1108 838.2 41.1 36 103.1 173 917.4 870 952.5 333.98
36″ 1172 889 44.5 32 103.1 180.8 965.2 920.8 1009.7 374.99
38″ 1222 939.8 44.5 36 111.3 192 1016 971.6 1060.5 51.95
40″ 1273 990.6 44.5 40 115.8 198.4 1066.8 1022.4 1114.6 55.97
42″ 1334 1041.4 47.8 36 119.1 204.7 1117.6 1074.7 1168.4 508.46
44″ 1384 1092.2 47.8 40 127 214.4 1173.2 1125.5 1219.2 69.03
46″ 1461 1143 50.8 36 128.5 222.3 1128.9 1176.3 1270 12.74
48″ 1511 1193.8 50.8 40 128.5 223.8 1277.9 1227.1 1327.2 678.19
50″ 1562 1244.6 50.8 44 138.2 235 1330.5 1277.9 1378 90.66
52″ 1613 1295.4 50.8 48 142.7 242.8 1382.8 1328.7 1428.8 98.74
54″ 1673 1346.2 50.8 48 136.7 239.8 1435.1 1379.5 1479.6 829.33
56″ 1765 1397 60.5 36 153.9 268.2 1493.8 1422.4 1536.7 122.93
58″ 1827 1447.8 60.5 40 153.9 274.6 1547.9 1481.1 1593.9 147.04
60″ 1878 1498.6 60.5 40 150.9 271.5 1598.7 1531.9 1651 1201.14

API 605/ASME B16.47 Series B Welding Neck Flanges Class 400 LBS Dimensions

NPS A B I Holes C D F E G Weight
26″ 850.9 635 38.1 28 88.9 149.35 688.85 660.4 711.2 165.95
28″ 914.4 685.8 41.15 24 95.25 158.9 739.65 711.2 762 204.49
30″ 971.55 736.6 41.15 28 101.6 169.93 793.75 762 819.15 239.2
32″ 1035.1 787.4 44.45 28 107.95 179.32 844.55 812.8 873.25 283.06
34″ 1085.9 838.2 44.45 32 111.25 187.45 898.65 863 927.1 307.92
36″ 1155.7 889 47.75 28 119.13 200.15 952.5 914.4 980.95 381.98

API 605/ASME B16.47 Series B Welding Neck Flanges Class 600 LBS Dimensions

NPS A B I Holes C D F E G Weight
26″ 889 635 44.45 28 111.25 180.85 698.5 660.4 726.95 244.55
28″ 952.5 685.8 47.75 28 115.82 190.5 752.35 711.2 784.35 287.49
30″ 1022.4 736.6 50.8 28 125.48 204.72 806.45 762 841.25 358.02
32″ 1085.9 787.4 53.85 28 130.05 215.9 860.55 812.8 895.35 414.01
34″ 1162.1 838.2 60.45 24 141.22 233.43 914.4 863.6 952.5 523.71
36″ 1212.9 889 60.45 28 146.05 242.82 968.25 914.4 1009.7 564.36

API 605/ASME B16.47 Series B Welding Neck Flanges Class 900 LBS Dimensions

NPS A B I Holes C D F E G Weight
26″ 1022.4 635 66.55 20 134.87 258.83 742.95 660.4 762 513.64
28″ 1104.9 685.8 73.15 20 147.57 276.35 797.05 711.2 819.15 646.22
30″ 1181.1 736.6 79.25 20 155.45 289.05 850.9 762 876.3 765.72
32″ 1238.3 787.4 79.25 20 160.27 303.28 908.05 812.8 927.1 863.06
34″ 1314.5 838.2 85.85 20 171.45 319.02 962.15 863.6 990.6 1023.53
36″ 1346.2 889 79.25 24 172.97 325.37 1016 914.4 1028.7 1038.21
