DIN 2634 PN25 Welding Neck Flange

Author : admin

Update time : 2026-05-14 08:58:34

DIN 2634 PN25 Welding Neck Flange

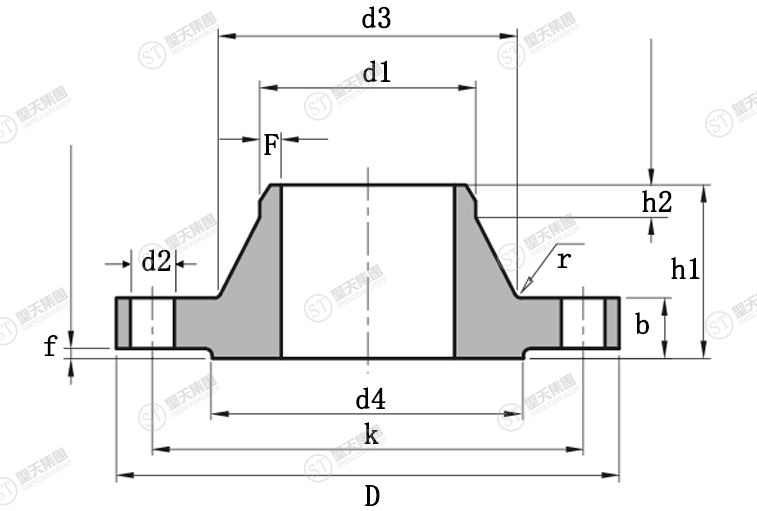

Dimension and weight of DIN2634 PN25 Welding Neck Flange

　　DIN 2634 PN 25 Weld Neck Flanges are generally used in high pressure applications, where hot or cold temperatures exist. These steel DIN 2634 weld neck flanges are circumferentially welded into the system at its neck which means that the integrity of the butt welded area can be easily examined by radiography. These PN 25 weld neck flanges reduce the turbulence and erosion inside the pipeline because the bores of both pipe and flange match. This also reduces high stress concentration at the base of the hub of the PN weld neck pipe flange. Such weld neck are favoured in critical applications. The inside diameter of a PN 25 weld neck flange is machined to match the inside diameter of the pipe.

Pipe Parameter	d1		Flange Dimension				Neck Size				Hub Size		Screw		Approx. Flange Weight
DN	ISO	DIN	D	b	k	h1	d3	s	r	h2	d4	f	No. of	d2	KG/PCS
DN	ISO	DIN	D	b	k	h1	d3	s	r	h2	d4	f	Holes	d2	KG/PCS
10	–	14	90	16	60	35	25	1.8	4	6	40	2	4	14	0.67
10	17.2	–	90	16	60	35	28	1.8	4	6	40	2	4	14	0.66
15	–	20	95	16	65	38	30	2	4	6	45	2	4	14	0.75
15	21.3	–	95	16	65	38	32	2	4	6	45	2	4	14	0.75
20	–	25	105	18	75	40	38	2.3	4	6	58	2	4	14	1.07
20	26.9	–	105	18	75	40	40	2.3	4	6	58	2	4	14	1.07
25	–	30	115	18	85	40	42	2.6	4	6	68	2	4	14	1.29
25	33.7	–	115	18	85	40	46	2.6	4	6	68	2	4	14	1.28
32	–	38	140	18	100	42	52	2.6	6	6	78	2	4	18	1.88
32	42.4	–	140	18	100	42	56	2.6	6	6	78	2	4	18	1.86
40	–	44.5	150	18	110	45	60	2.6	6	7	88	3	4	18	2.1
40	48.3	–	150	18	110	45	64	2.6	6	7	88	3	4	18	2.08
50	–	57	165	20	125	48	72	2.9	6	8	102	3	4	18	2.81
50	60.3	–	165	20	125	48	75	2.9	6	8	102	3	4	18	2.78
65	76.1	–	185	22	145	52	90	2.9	6	10	122	3	8	18	3.61
80	88.9	–	200	24	160	58	105	3.2	8	12	138	3	8	18	4.62
100	–	106	235	24	190	65	128	3.6	8	12	162	3	8	22	6.42
100	114.3	–	235	24	190	65	134	3.6	8	12	162	3	8	22	6.27
125	–	133	270	26	220	68	155	4	8	12	188	3	8	26	8.83
125	139.7	–	270	26	220	68	162	4	8	12	188	3	8	26	8.61
150	–	159	300	28	250	75	182	4.5	10	12	218	3	8	26	11.67
150	166.3	–	300	28	250	75	192	4.5	10	12	218	3	8	26	11.29
175	193.7	–	330	28	280	75	218	5.6	10	15	248	3	12	26	13.11
200	219.1	–	360	30	310	80	244	6.3	10	16	278	3	12	26	16.61
250	–	267	425	32	370	88	292	7.1	12	18	335	3	12	30	23.99
250	273	–	425	32	370	88	298	7.1	12	18	335	3	12	30	23.48
300	323.9	–	485	34	430	92	352	8	12	18	395	4	16	30	30.74
350	355.6	–	555	38	490	100	398	8	12	20	450	4	16	33	47.2
350	–	368	555	38	490	100	398	8	12	20	450	4	16	33	44.22
400	406.4	–	620	40	550	110	452	8.8	12	20	505	4	16	36	61.69
400	–	419	620	40	550	110	452	8.8	12	20	505	4	16	36	57.88
500	508	–	730	44	660	125	558	10	12	20	615	4	20	36	89.57
600	610	–	845	46	770	125	660	11	12	20	720	5	20	39	114.96
700	711	–	960	46	875	125	760	12.5	12	20	820	5	24	42	139.5
800	813	–	1085	50	990	135	865	14.2	12	22	930	5	24	48	188.71
900	914	–	1185	54	1090	145	968	16	12	24	1030	5	28	48	231.48
1000	1016	–	1320	58	1210	155	1070	17.5	16	24	1140	5
