DIN 2642 PN10 Lapped Joint Flange Plain Collar

　　　　Lap joint flange shape is similar to slip on flange, it has a curved radius at the bore, which can connect with a stub end fittings and slide over the pipe.

　　Lap Joint flanges are used on pipes fitted with lapped pipe or with lap joint stub ends. The lap joint flange with the stub end assembly are normally used in systems requiring frequent dismantling for inspection and cleaning and where the ability to swivel flanges and to align bolt holes materially eases the erection of large diameter or unusually stiff piping. These flanges are also used in applications where there is a need to facilitate bolt alignment.

　　These type of flanges are similar to slip-on flanges. The only difference is that it has a curved radius at the bore and face to accommodate a lap joint stub end. They may be used at all pressures and are available in a full size range. These lap joint flanges slip over the pipe, and are not welded. They are otherwise fastened to it. Here the bolting pressure is transferred to the gasket by the pressure of the flange against the back of the pipe lap

Product Description

　　Standard: DIN 2642

　　Flange type: Loose Flange And Ring With Neck For Welding , lap joint flange

　　Size range: DN10-DN1200

　　Pressure class: PN10

　　Connection type: Ring type joint, lap-joint face,Raised face, flat face, male-female,Large tongue & groove,small tongue & groove.

　　Process: Forged or Stamped

　　Specialize: As per drawing

　　Material:

　　Stainless Steel Material:

　　ASTM A182 F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L

　　Duplex stainless steel UNS S32304,S31803,S32205.

　　Super Duplex stainless steel UNS S32750/S32760/S31260/S32550/S32707

　　Carbon Steel Material:

　　ASTM A105, Q235, A350 LF2,ASTM A694 F42/F46/F52/F60/F65/F70/F80

　　Alloy Steel Material:

　　ASTM A 182, GR F1,F5, F9, F11, F22, F91

　　Copper&Nickel Alloy Material:

　　CU/NI 90/10, CU/NI 70/30

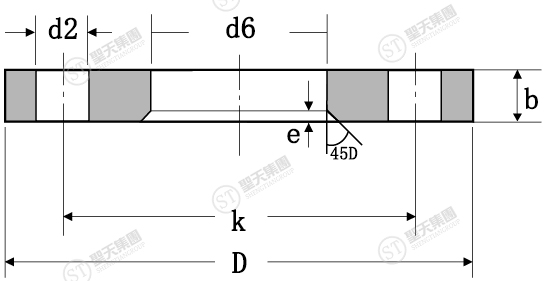

Dimension and weight of DIN2642 PN10 Lapped Joint Flange Plain Collar

Pipe Parameter			Flange Dimension					Screw Dimension		Approx. Weight
DN	ISO	DIN	D	d6	b	k	e	No. of holes	d2	KG/PCS
10	–	14	90	16	14	60	3	4	14	0.61
10	17.2	–	90	19	14	60	3	4	14	0.6
15	–	20	95	22	14	65	3	4	14	0.67
15	21.3	–	95	24	14	65	3	4	14	0.66
20	–	25	105	28	14	75	3	4	14	0.82
20	26.9	–	105	30	14	75	3	4	14	0.81
25	–	30	115	33	16	85	4	4	14	1.12
25	33.7	–	115	36	16	85	4	4	14	1.1
32	–	38	140	42	16	100	4	4	18	1.63
32	42.4	–	140	46	16	100	4	4	18	1.6
40	–	44.5	150	50	16	110	4	4	18	1.85
40	48.3	–	150	54	16	110	4	4	18	1.8
50	–	57	165	62	16	125	5	4	18	2.18
50	60.3	–	165	65	16	125	5	4	18	2.14
65	76.1	–	185	81	16	145	5	4	18	2.6
80	88.9	–	200	94	18	160	5	8	18	3.17
100	–	108	220	113	18	180	5	8	18	3.67
100	114.3	–	220	119	18	180	5	8	18	3.51
125	–	133	250	138	18	210	5	8	18	4.53
125	139.7	–	250	145	18	210	5	8	18	4.32
150	–	159	285	164	18	240	5	8	22	5.6
150	168.3	–	285	173	18	240	5	8	22	5.26
200	219.1	–	340	225	20	295	5	8	22	7.53
250	–	267	395	273	22	350	5	12	22	10.27
250	273	–	395	279	22	350	5	12	22	9.82
300	323.9	–	445	329	26	400	5	12	22	13.46
350	355.6	–	505	362	28	460	6	16	22	20.07
350	–	368	505	374	28	460	6	16	22	18.54
400	406.4	–	565	413	32	515	6	16	26	27.19
400	–	419	565	426	32	515	6	16	26	25.04
500	508	–	670	517	38	620	6	20	26	39.38
600	610	–	780	618	44	725	7	20	30	56.55
700	711	–	895	721	50	840	7	24	30	80.02
800	813	–	1015	824	56	950	7	24	33	112.25
900	914	–	1115	926	62	1050	7	28	33	135.8
1000	1016	–	1230	1026	70	1160	7	28	36	182.96
